Bench Drilling Machine |

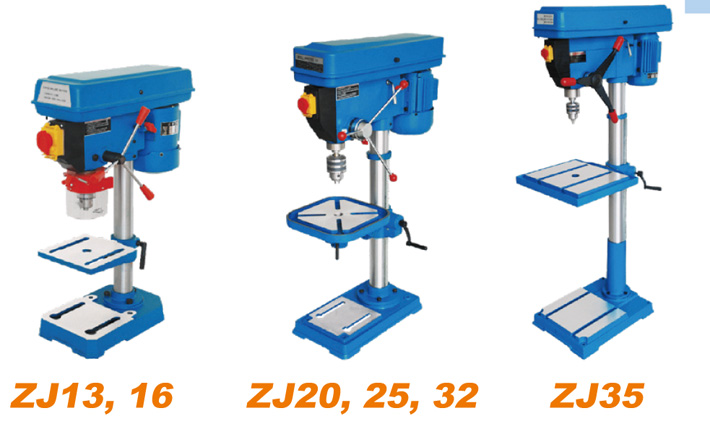

Bench Drilling Machine ZJ13/16/20/25/32/35 |
 |
|
Model
|
ZJ13
|
ZJ16
|
ZJ20
|
ZJ25
|
ZJ32
|
ZJ35
|
|
Drilling Capacity
|
1.5~13
|
3~16
|
5~20
|
5~20
|
5~32
|
5~32
|
|
Spindle Travel (mm)
|
50
|
80
|
85
|
80
|
120
|
120
|
|
Spindle Taper（mm)
|
B16
|
MT2
|
MT2
|
MT3
|
MT4
|
MT4
|
|
Speed of Spindle
|
5
|
16
|
12
|
12
|
12
|
12
|
|
Rotary Radius of Table（mm)
|
104
|
165
|
173
|
173
|
254
|
254
|
|
Table Size（mm)
|
160x165
|
ф290
|
260x260
|
260x260
|
360x360
|
420x480
|
|
Base Size（mm)
|
290x190
|
420x250
|
460x270
|
460x272
|
470x360
|
575x430
|
|
Max Distance Between Spindle And Table（mm)
|
210
|
450
|
340
|
670
|
480
|
480
|
|
Max Distance Between Spindle And Base（mm)
|
300
|
660
|
880
|
1100
|
1050
|
1050
|
|
Diameter of Column（mm)
|
ф46
|
ф70
|
ф70
|
ф70
|
ф92
|
ф92
|
|
Motor Power(W)
|
350
|
550
|
750
|
750
|
1100
|
1100
|
|
Overall Dimension（mm)
|
440x250x580
|
580x330x980
|
580x330x1200
|
580x350x1600
|
780x600x1700
|
780x600x1700
|
|
Pack Size（mm)
|
440x340x220
|
780x450x280
|
800x500x300
|
1150x500x300
|
1450x640x340
|
1470x670x350
|
|
N.W./G.W.(kg)
|
16/17
|
44/46
|
57/60
|
67/70
|
130/135
|
145/153
|
|
Loading Amount/20'ctn
|
880PCS
|
300PCS
|
250PCS
|
178PCS
|
86PCS
|
86PCS
|
|
| |
|
|
