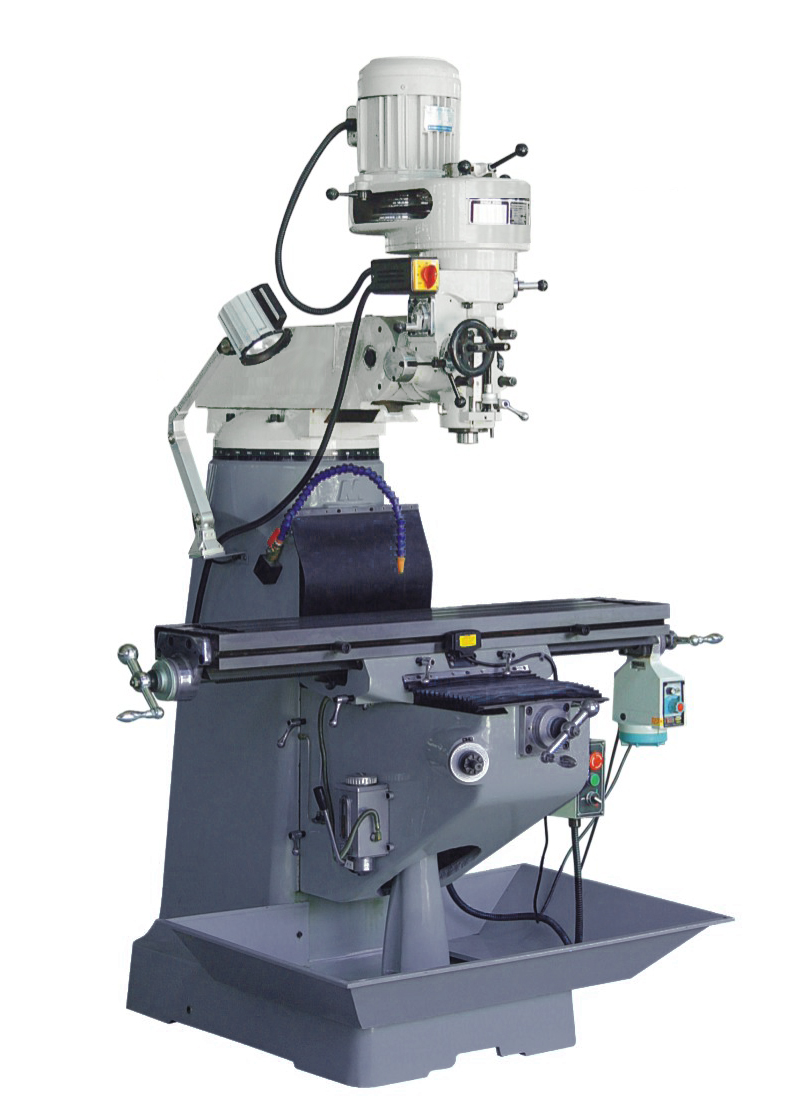

XT2£¬XT4 Turret milling machine |
 |
|
Model |
XT2 |
XT4 |
|
Spindle taper |
R8/NT30(§æ86mm) |
R8/NT30(§æ86mm) |
|
Number of steps |
16 |
16 |
|
Range of spindle speed |
80-4530rpm |
80-4530rpm |
|
Down feed of spindle |
0.04-0.08-0.16rev/mm |
0.04-0.08-0.16rev/mm |
|
Number of down feed |
3 |
3 |
|
Spindle tavel |
127 |
127 |
|
Head incline(left-right) |
90° |
90° |
|
Head incline(forth-back) |
45° |
45° |
|
Distance spindle to table(Max.) |
445mm |
420mm |
|
Collet capacity |
3-22mm |
3-22mm |
|
Dimension of worktable |
230*1245mm |
250*1270mm |
|
Longitudinal travel of table(Max.) |
900mm |
900mm |
|
Cross travel of table(Max.) |
320mm |
380mm |
|
T-slot size/distance/number |
16mm/64mm/3 |
16mm/64mm/3 |
|
Between two T-slot's distance |
64mm |
64mm |
|
Table load(Max.) |
250kg |
320kg |
|
Travel of up & down(Max.) |
420mm |
420mm |
|
Travel of strectching arm |
320mm |
380mm |
|
Guiding tracks X£¬Y£¬Z |
triangle£¬triangle£¬triangle |
triangle£¬square£¬triangle |
|
Dimension |
1663*1660*2032mm |
2430*1740*2100mm |
|
Motor |
2.2KW,3Ph,50Hz,380V |
2.2KW,3Ph,50Hz,380V |
|
Net weight |
920kg |
1200kg |
|
| |
|
