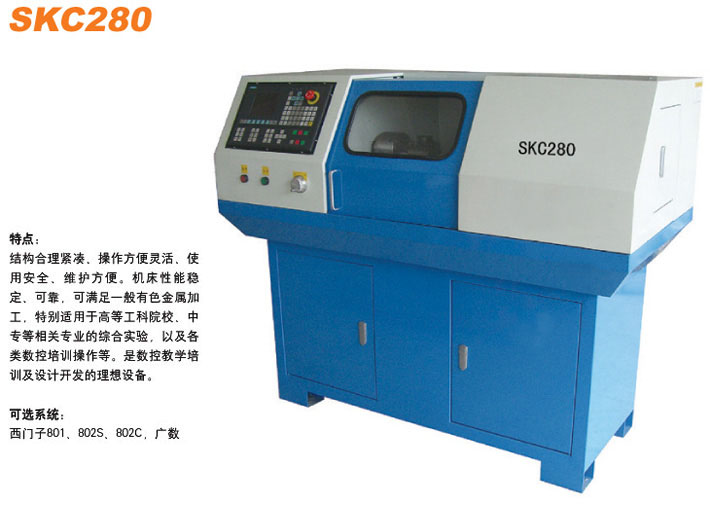

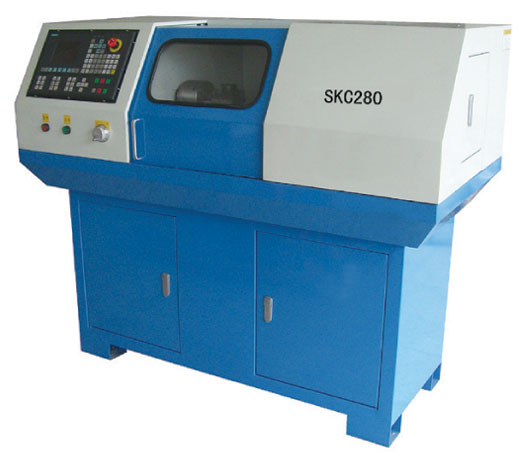

数控车床 |
 |
|
床身上最大件回转直径
|
Max. swing over bed
|
SKC280
|
|
最大工件长度
|
Max. length of work piece
|
600mm
|
|
主轴转速范围
|
Spindle speed
|
150-2200rpm变频调速infinitely variable speed
|
|
主轴孔径
|
Spindle bore
|
26mm
|
|
主轴锥度
|
Spindle taper
|
MT3
|
|
X轴行程
|
X travel
|
125mm
|
|
Z轴行程
|
Z travel
|
480mm
|
|
X轴快速移动速率
|
X rapid speed
|
200mm/min
|
|
Z轴快速移动速率
|
Z rapid speed
|
4000mm/min
|
|
定位精度
|
Position accuracy
|
±0.01mm
|
|
重复定位精度
|
Rep positioning accuracy
|
±0.02mm
|
|
刀位数量
|
Number of tool stations
|
4/6 stations
|
|
尾架套筒锥度
|
Tailstock taper
|
MT2
|
|
尾架行程
|
Travel of tailstock sleeve
|
50mm
|
|
主轴电机功率
|
Motor power
|
1.1KW
|
|
净重/毛重
|
N.W/G.W
|
430KG/460KG
|
|
包装尺寸
|
Packing list
|
1900×800×1700mm
|
|
| |
|
|
