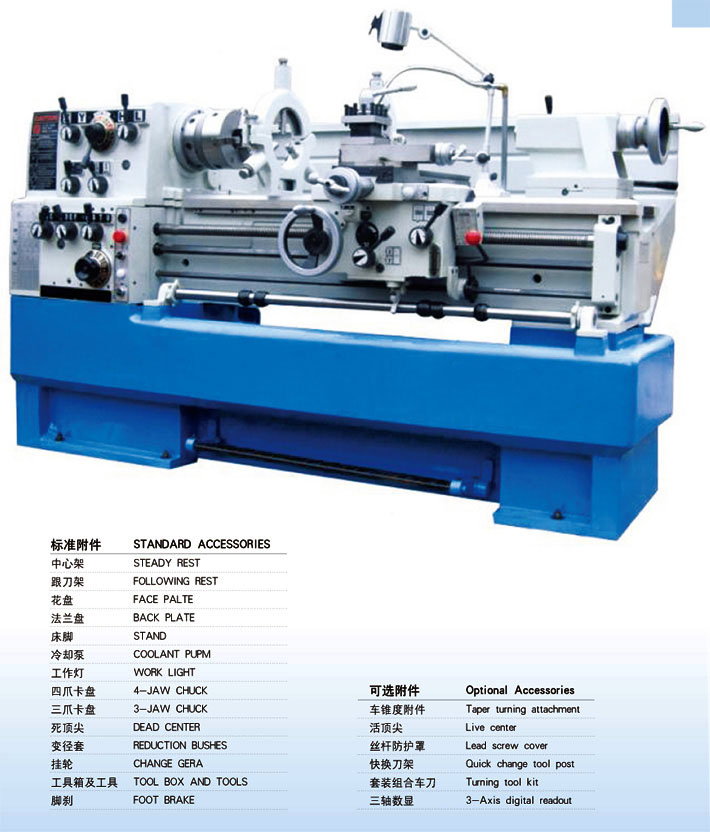

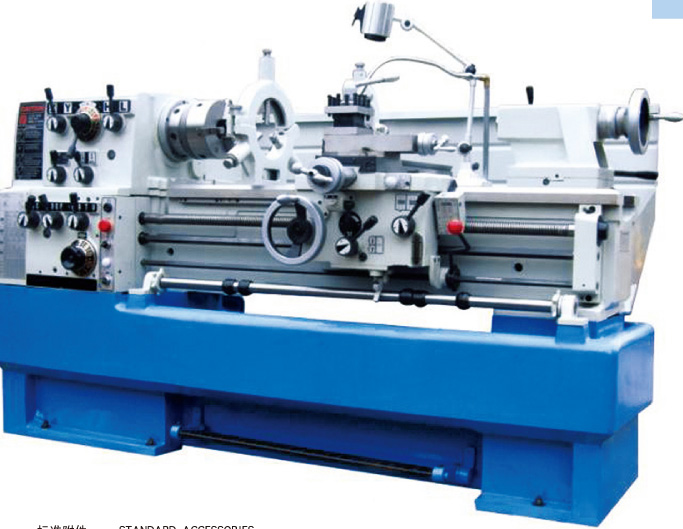

工业车床 |
 |
|
床身上最大工件回转直径
|
Swing over bed
|
ø410mm
|
ø460mm
|
|
拖板上最大工件回转直径
|
Swing over cross slide
|
ø224mm
|
ø274mm
|
|
马鞍板上最大工件回转直径
|
Turning ø without bed bridge
|
ø640mm
|
ø690mm
|
|
主轴中心高
|
Center height
|
205mm
|
230mm
|
|
两顶尖中心距
|
Admits between
|
1000mm(40")/1500mm(60")
|
|
床身宽度
|
Width of bed
|
300mm
|
|
主轴通孔直径
|
Spindle bore
|
D1-6/ø58mm
|
|
主轴内孔锥度
|
Taper of spindle bore
|
MT6
|
|
主轴转速范围
|
Range of spindle speed
|
25-2000rpm
|
|
小拖板行程
|
Compound rest travel
|
128mm(5")
|
|
中拖板行程
|
Cross slide travel
|
285mm(11-1/4")
|
|
大丝杆规格
|
Lead screw thread
|
6mm or 4T.P.I.
|
|
车刀刀杆最大尺寸（宽x高）
|
Max. Section of tool（W x H)
|
25x25mm(1x1")
|
|
纵向进给范围
|
Longitudinal feeds range
|
42kinds,0.0031-1.7mm/rev
|
|
横向进给范围
|
Cross feeds range
|
42kinds,0.014-0.784mm/rev
|
|
公制螺纹范围
|
Threads metric pitches
|
0.1-14mm
|
|
英制螺纹范围
|
Threads imperial pitches
|
2-112TPI
|
|
径节制螺纹规格
|
Threads diametral pitches
|
50kinds,4-112D.P.
|
|
模数制螺纹规格
|
Threads module pitches
|
34kinds,0.1-7M.P.
|
|
尾座套筒直径
|
Quill diameter
|
60mm(2-5/16")
|
|
尾座套筒行程
|
Quill travel
|
120mm(4-3/4")
|
|
尾座套筒内孔锥度
|
Quill taper
|
MT4
|
|
横向调整
|
Cross adjustment
|
±13mm
|
|
主电机功率
|
Main motor power
|
4 or 5.5KW
|
|
冷却泵功率
|
Coolant pump power
|
0.1KW/3PH
|
|
包装箱尺寸（长x宽x高）
|
Packing size(L x W x H)
|
2850x1120x1700mm
|
|
外形尺寸（长x宽x高）
|
Overall dimension(L x W x H)
|
2200x1080x1340mm
|
2750x1080x1340mm
|
|
净重/毛重
|
NW/GW
|
1670/1980kgs
|
2020/2385kgs
|
|
| |
|
|
